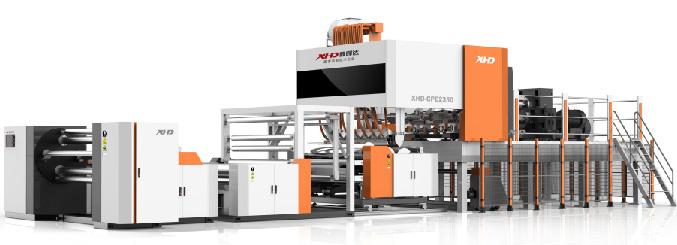

XHD-LΦ 75/100/75x2500 CPE Cast Film Line

Xinhuida developed CPE embossed film line to meet today’s flexible film market in various applications based on customer feedback and our own summaries. This line can be used to produce multi-layer co-extruded CPE highly transparent packaging film by using raw materials such as LLDPE, MLLDPE, LDPE or HDPE. Each line is supplied with advanced intelligent control system to simplify operation like winding, changing and cutting rolls automatically, and improve overall line efficiency.

Packaging industry for food, stuff and consumer goods.

• A negative pressure double chamber vacuum box and electrostatic film edge pinning system ensure a stable film melting.
• A special screw ensures good plasticization, uniform color and increasing extrusion capacity.
• Automatic die head to ensure the melt inside the die head has uniform layer and consistent extrusion speed
• Automatic thickness gauging system controlled by APC to fine-tune the thickness deviation
• Long-acting screen changer to reduce the change frequency and extend the machine’s operation time
• Cool roller with a built in spiral flow way to ensure excellent plasticization and stable extrusion
• Highly stable corona treatment device to increase surface tension of materials to prepare them for subsequent processing
• Double-station rotating-disc type winding system with a central and contact winding function, auto cut, auto changing roll
• Multi-step auto tension control system to guarantee the stable tension during production
• According to customer needs and the machine width, an on-line slitting function can be configured to directly wind the finished film roll.

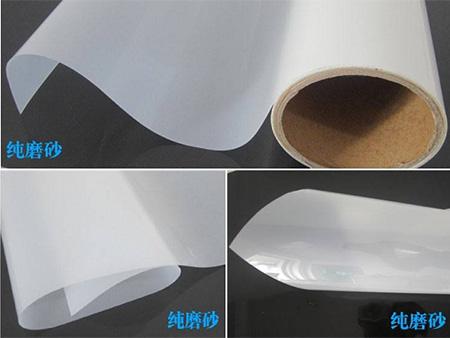

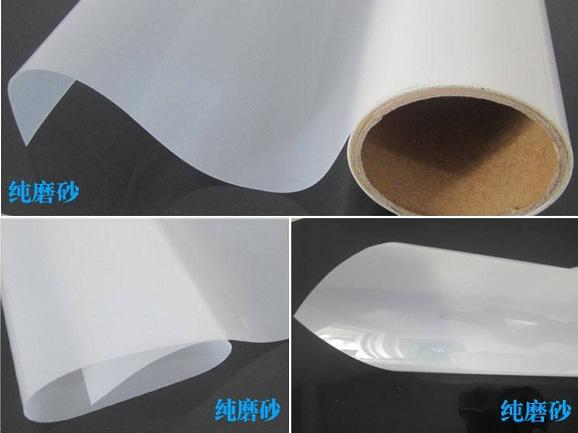

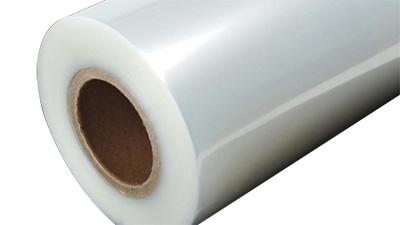

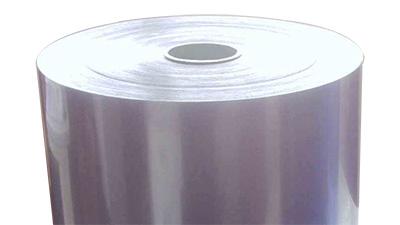

1. The common thickness of the CPE film is 0.025-0.16mm. 2500mm and 3200mm are the most popular width and can be cut again if necessary

2. High transparency, low haze, non-oriented, good flexibility, excellent heat sealing performance and cold endurance
