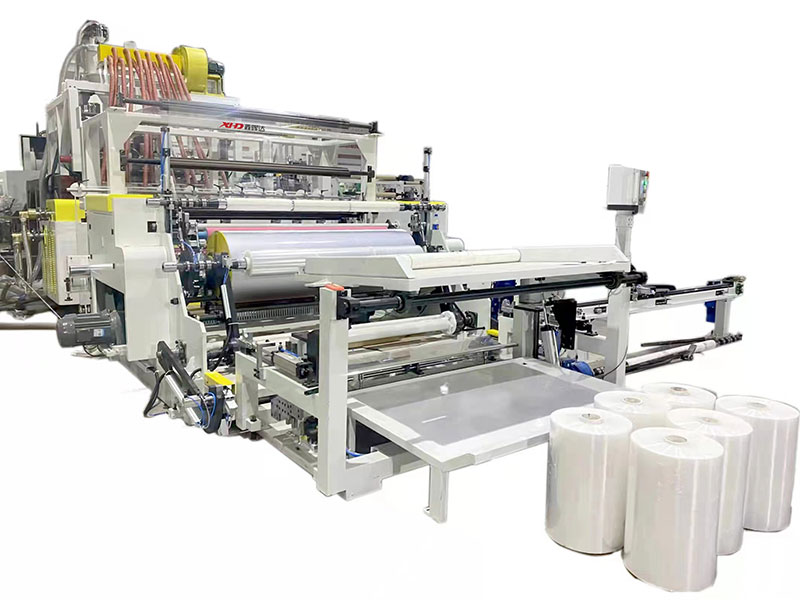

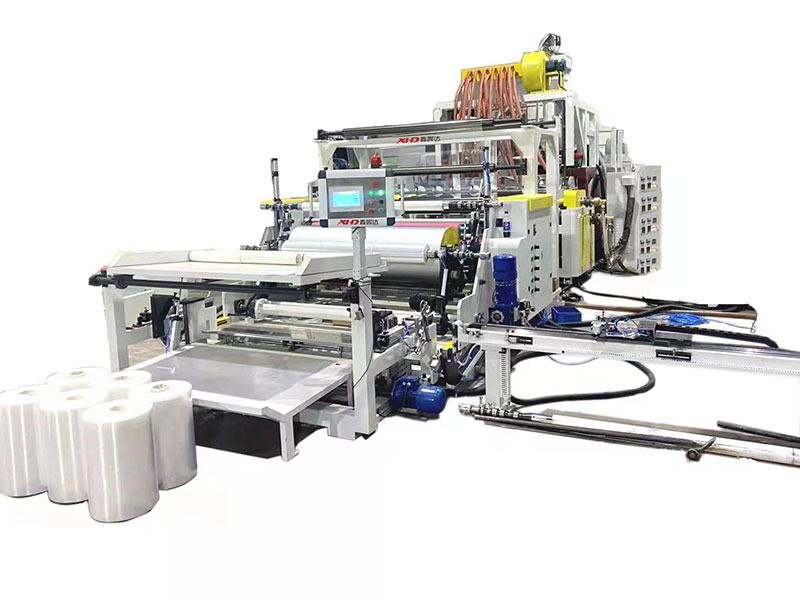

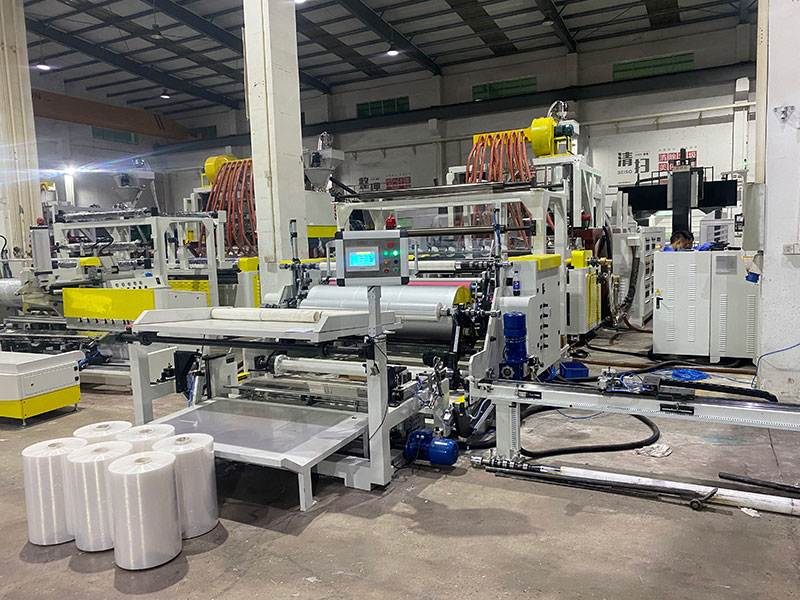

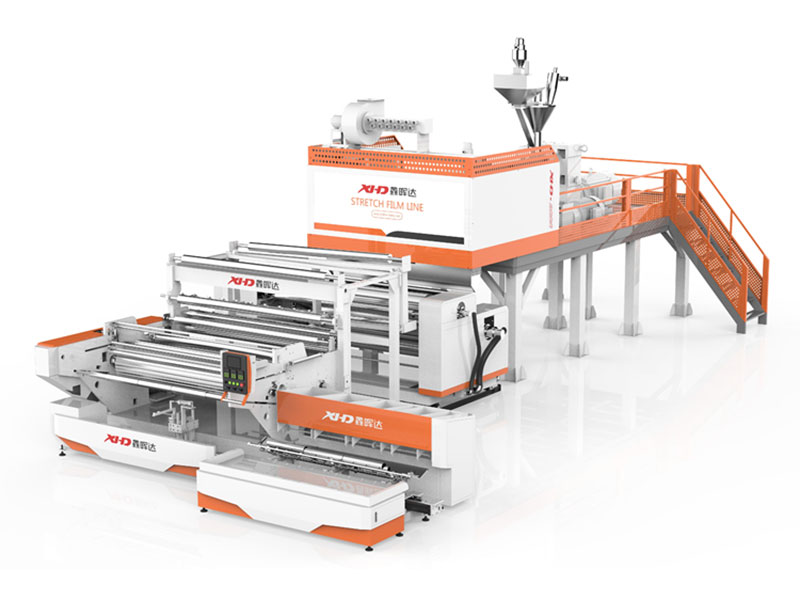

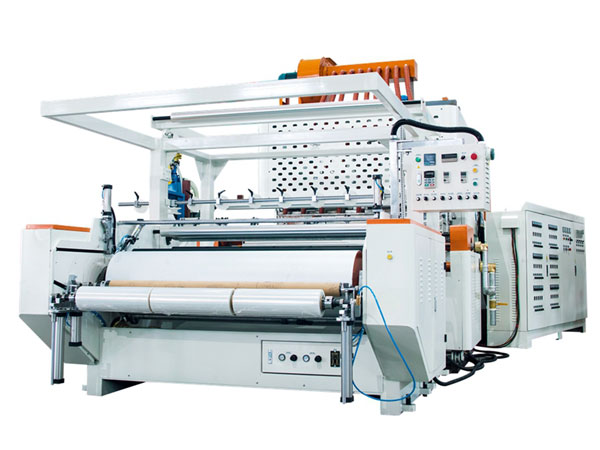

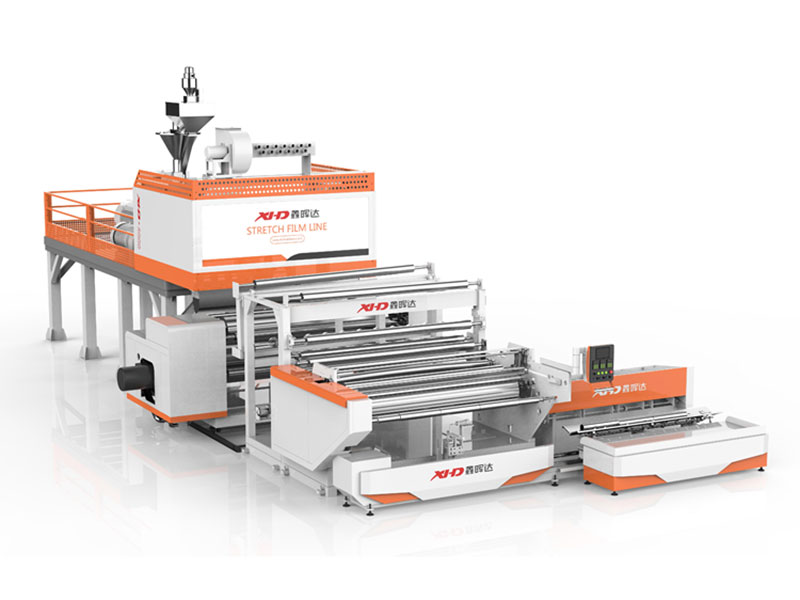

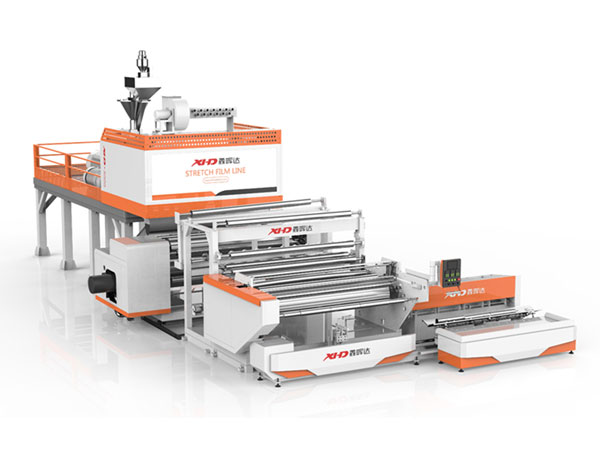

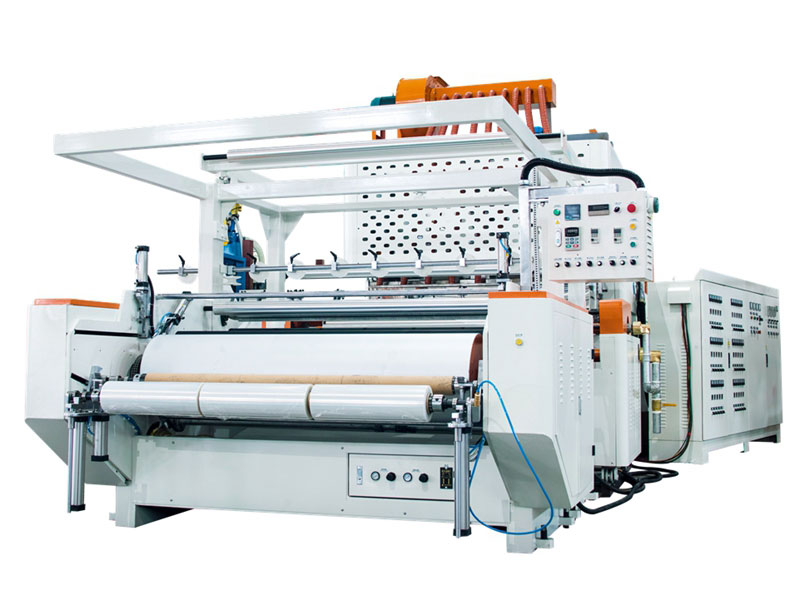

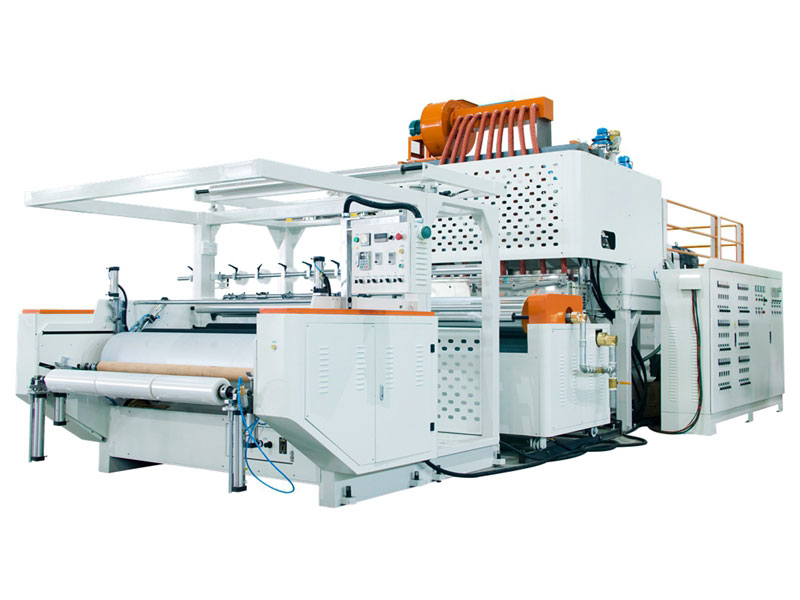

1500mm Stretch Film Machine
-

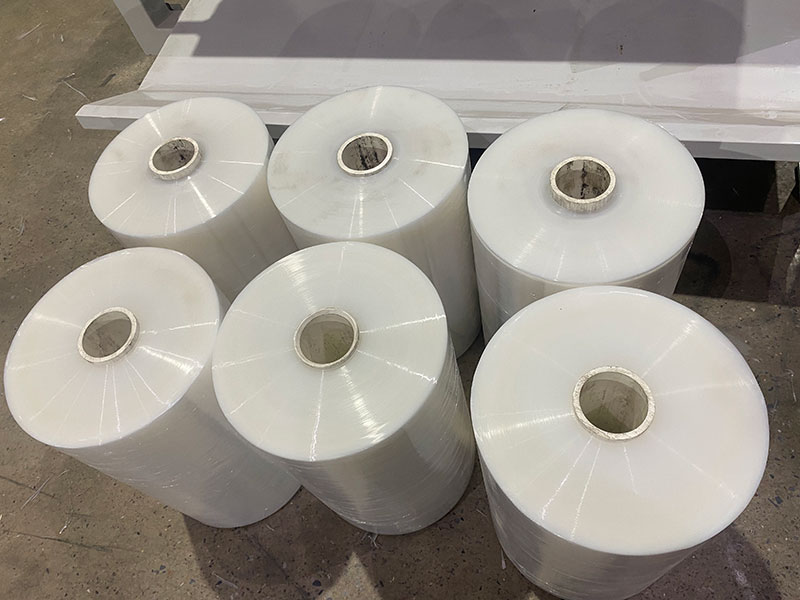

Stretch Film Rolls
2-5kg/roll small hand-use stretch film rolls
10-18kg/roll machine-use stretch film rolls
Medium size rolls with weight around 33.5kg at film width of 500mm -
PE Cling Film Rolls
8-10 microns 250-500 mm PE cling film rolls
30~35 microns 250 mm/300 mm/500 mm/750 mm silage film rolls (UV protective film rolls)
- The quality of produced stretch film can rival that of films produced by European machines
- Excellent production capacity and power consumption ratio: around 0.4 kWh/kg
- The entire stretch film machine can be operated by one operator
- Rubber couplings for connecting main motor and gear box
- Alloy screws and barrels with good nitrogen treatment
- Automatic screen changer powered by hydraulic station
- Top quality XHD T-die (standard) or JC-TIMES T-die (optional)
- Large diameter (standard 720 mm/optional 800 mm) and quality cooling rollers from reliable suppliers
- Silicone-coated roller is installed for cleaning the primary cooling roller
- Synchronous wheels and belts, idle rollers with hardened surface are used for high speed production
- Powerful crusher and new hopper design for recycled flakes feeding
- We can use some certain brands for the machine parts if the customer agrees to pay extra cost
- Customized proposals are always available for top quality, higher speeds, higher output and higher benefits
| Model |
|
| Industrial Power Supply | 3 phases industrial power supply |
| Total Installation Power | 180 kW (for the machine only) |
| Main Raw Material | LLDPE, LDPE (few) & MLLDPE |
| Film Thickness | 12-50 μm (the minimum thickness can be 8 microns) |
| Film Width | Maximum 1500 mm |
| Film Layer Structure | 3 layers of CBA or 5 layers of CABAC |
| Design Line Speed | 200 M/min |
| Extrusion Output | 150-280 kg/h |
| Dimensions (L×W×H) | 9.8×3.5×4.6 M (for reference only!) |
| Gross Weight | 13,000 kg (for reference only) |
| Model |
|
| Industrial Power Supply | 3 phases industrial power supply |
| Total Installation Power | 190 kW (for the machine only) |
| Main Raw Material | LLDPE, LDPE (few) & MLLDPE |
| Film Thickness | 12-50 μm (the minimum thickness can be 8 microns) |
| Film Width | Maximum 1500 mm |
| Film Layer Structure | 3 layers of CBA or 5 layers of CABAC |
| Design Line Speed | 200 m/min |
| Extrusion Output | 150-280 kg/h |
| Dimensions (L×W×H) | 12.5×5.5×4.6 m (for reference only!) |
| Gross Weight | 15,000 kg (for reference only) |
- Automatic paper cores unloading and loading
- Automatic finished rolls unloading
- Automatic standby air shaft loading
- Automatic air shaft inflation and deflation
Guangdong Xinhuida Machinery Technology Co., Ltd. is committed to driving the cast film market forward through innovation. We focus all of our resources on the research, design, and production of cast film lines that can produce various types of film, like stretch-wrap film, cling film, silage wrap film, and special cast film, ranging from 500 to 2000mm in width. Xinhuida has more than 50 national patent certificates and all of machines are CE and 3C certified. We continue to pioneer new technologies, provide innovative solutions to help customers achieve a processing advantage, and create new, unique products.
