Fully Automatic Slitter Rewinder

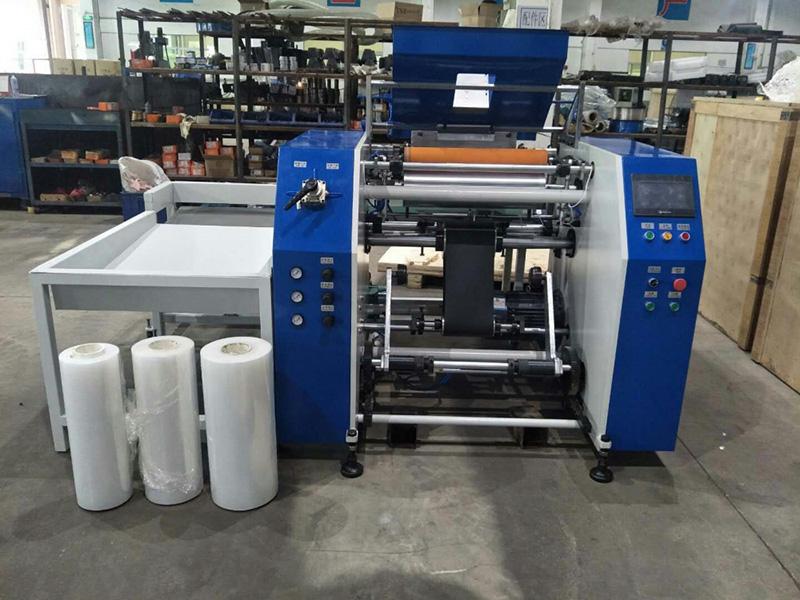

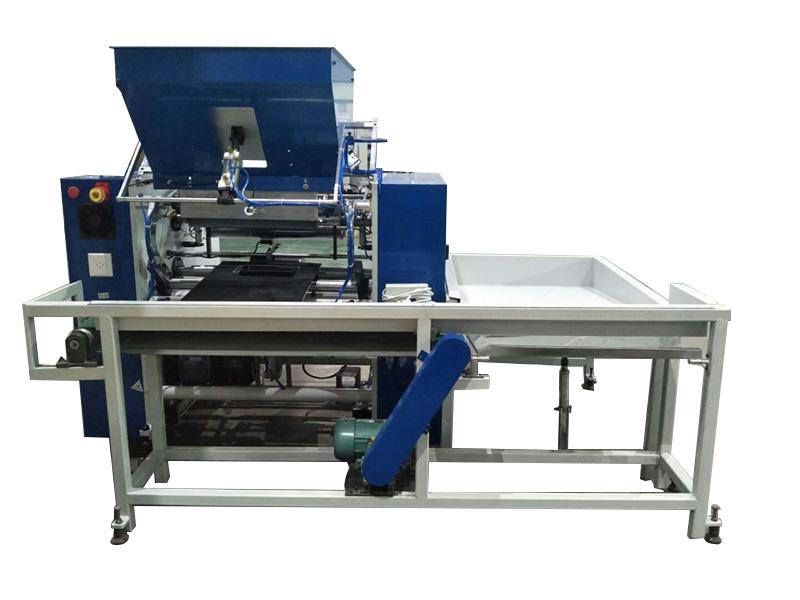

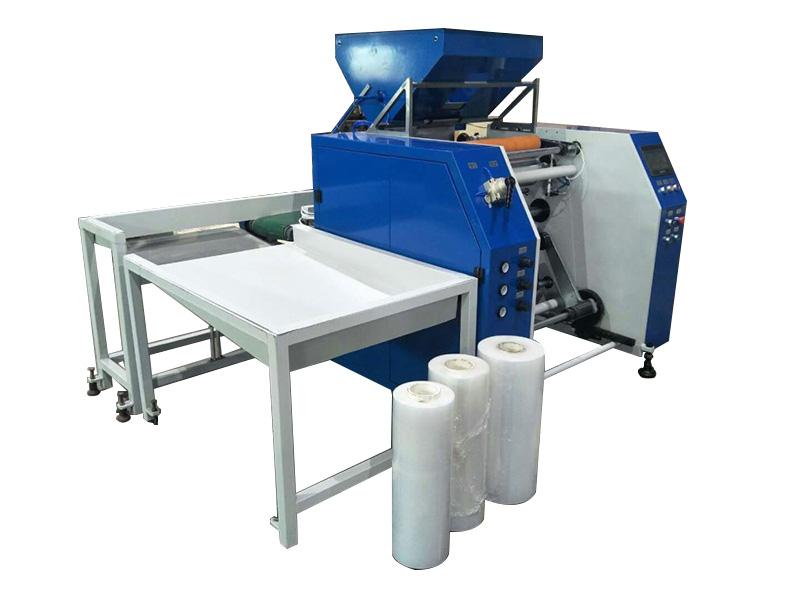

The XHD-500 fully-automatic slitter rewinder is primarily used to convert larger cast film rolls into smaller ones, in an efficient, safe, and fully automatic manner to meet specific customer requirements. Rewinding improves the tensile strength and puncture resistance, as well as adds to the tight appearance of the finished roll.
- This slitter rewinder combines a variety of functions into 1, including rewinding, metering, automatic cutting, and more.
- With just a simple change to the input pressure of the cylinder and the tightness of the belt, the film roll tightness is guaranteed.
- Rewinding 1000 meters of film per minute and 8.5-9 tons of products per day fully-automatically and efficiently
| Power | 4 kw |
| Line Speed | 1000m/min |
| Maximum Theoretical Yield | 550t/h(film thickness=20μm)thickness of film |
| Maximum Actual Yield | 8.5~9t/24h（Depending on the proficiency and other factors） |
| Uploading Type of Paper Core | Automatic |
| Maximum Master Roll Width | 500mm |
| Maximum Master Roll Diameter | 500mm |
| Master Core Inner Diameter | 3" |
| Cutting Type of Stretch Film | cutting with resistance wire |
| Finished Roll Width | 500mm |
| Maximum Finished Roll Diameter | 200mm |
| Finished Core Inner Diameter | 2" & 3" |
| Machine Dimension (L*W*H): | 2.6×1.8×1.4m |
| Net Weight | 0.8t |
Guangdong Xinhuida Machinery Technology Co., Ltd. is committed to driving the cast film market forward through innovation. We focus all of our resources on the research, design, and production of cast film lines that can produce various types of film, like stretch-wrap film, cling film, silage wrap film, and special cast film, ranging from 500 to 2000mm in width. Xinhuida has more than 50 national patent certificates and all of machines are CE and 3C certified. We continue to pioneer new technologies, provide innovative solutions to help customers achieve a processing advantage, and create new, unique products.
