2000mm Stretch Film Machine

Applications
  • Stretch Film Rolls 2-5kg/roll small hand-use stretch film rolls
    10-18kg/roll machine-use stretch film rolls
    Medium size rolls with weight around 33.5kg at film width of 500mm
  • PE Cling Film Rolls 8-10 microns 250-500 mm PE cling film rolls
    30~35 microns 250 mm/300 mm/500 mm/750 mm silage film rolls (UV protective film rolls)
Highlights of Stretch Film Machine
  • The quality of produced stretch film can rival that of films produced by European machines
  • Excellent production capacity and power consumption ratio: around 0.4 kWh/kg
  • The entire stretch film machine can be operated by one operator
  • Automatic paper cores unloading, finished rolls unloading, standby air shaft loading
Standard Configurations
  • Rubber couplings for connecting main motor and gear box
  • Alloy screws and barrels with good nitrogen treatment
  • Automatic screen changer powered by hydraulic station
  • Top quality XHD T-die (standard) or JC-TIMES T-die (optional)
  • 980 mm diameter cooling roller from reliable suppliers
  • Silicone-coated roller is installed for cleaning the primary cooling roller
  • Synchronous wheels and belts, idle rollers with hardened surface are used for high speed production
  • Automatic air shaft inflation and deflation, automatic spare air shaft loading
  • Powerful crusher and new hopper design for recycled flakes feeding
  • Patented automatic system for paper cores unloading and loading (patented design for jumbo roll winder)
Remarks
  • We can use some certain brands for the machine parts if the customer agrees to pay extra cost
  • Customized proposals are always available for top quality, higher speeds, higher output and higher benefits

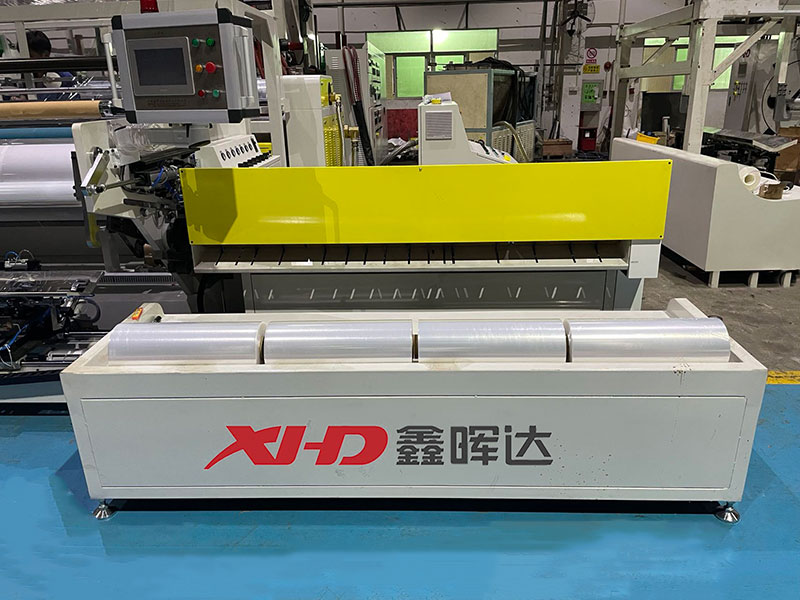

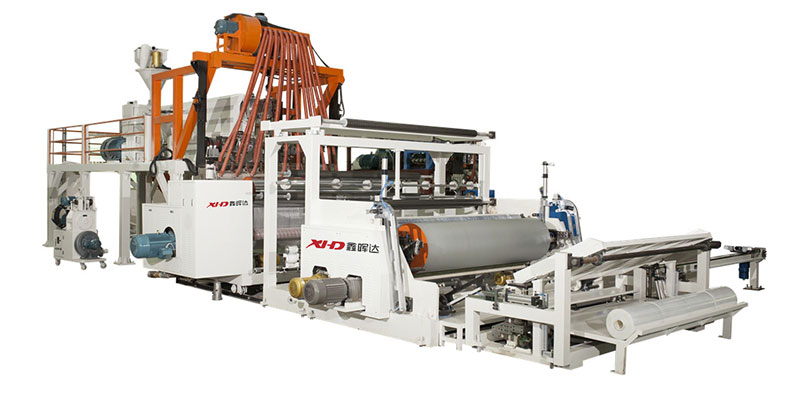

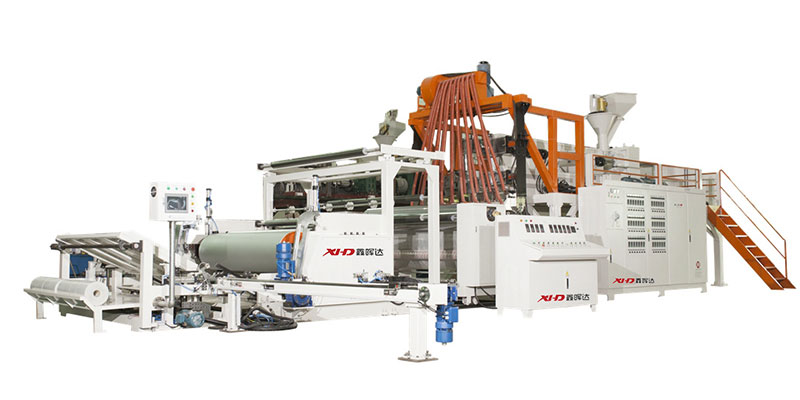

3-layer/5-layer 2000mm LLDPE Cast Stretch Film Machine, XHD-65-100-80-2400-A
  • 3-layer/5-layer 2000mm LLDPE Cast Stretch Film Machine, XHD-65-100-80-2400-A
  • 3-layer/5-layer 2000mm LLDPE Cast Stretch Film Machine, XHD-65-100-80-2400-A
Technical Parameters
Model XHD-65/100/80-2400
Power Supply 3 phases industrial power supply
Total Installation Power 240 kW (for the machine only)
Main Raw Material LLDPE, LDPE (few) & MLLDPE
Film Thickness 8-50 microns.
Film Width Maximum width: 2000 mm
Film Layer Structure Three or five layers
Design Line Speed 250 m/min
Extrusion Output 500 kg/h (maximum and on theory).
Dimensions (L×W×H) 14×5.5×4.6 m (for reference only)
Gross Weight 16000 kg (for reference only)

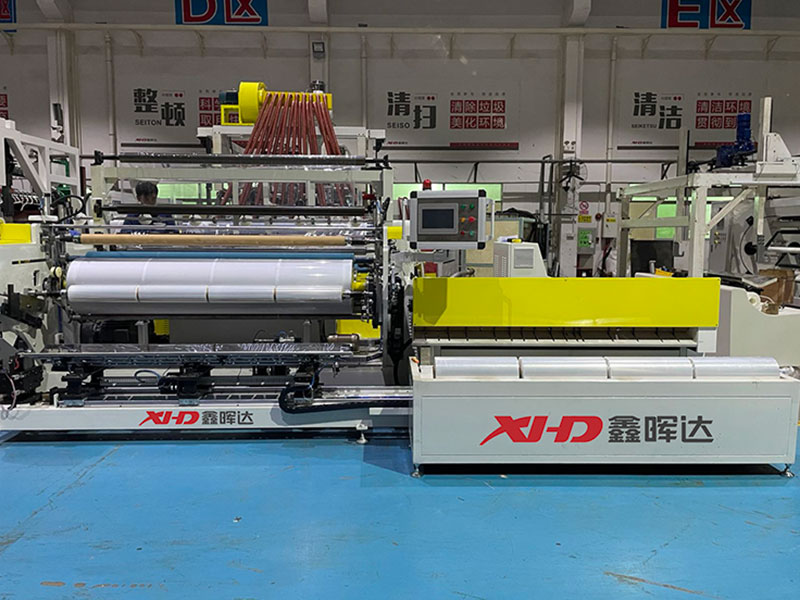

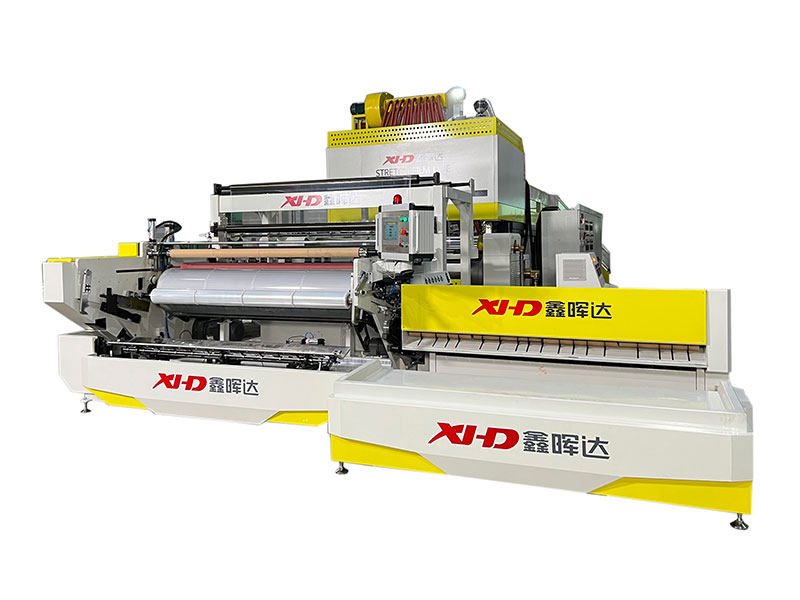

3-layer/5-layer 2000mm LLDPE Cast Stretch Film Machine, XHD-80-120-80-2400-A
  • 3-layer/5-layer 2000mm LLDPE Cast Stretch Film Machine, XHD-80-120-80-2400-A
  • 3-layer/5-layer 2000mm LLDPE Cast Stretch Film Machine, XHD-80-120-80-2400-A
Technical Parameters
Model XHD-80/120/80-2400
Power Supply 3 phases industrial power supply
Total Installation Power 280 kW (for the machine only)
Main Raw Material LLDPE, LDPE (few) & MLLDPE
Film Thickness 8-50 microns.
Film Width Maximum width: 2000 mm
Film Layer Structure Three or five layers
Design Line Speed 250 m/min
Extrusion Output 400-550 kg/h
Dimensions (L×W×H) 14×5.5×4.6 m (for reference only)
Gross Weight 20000 kg (for reference only)

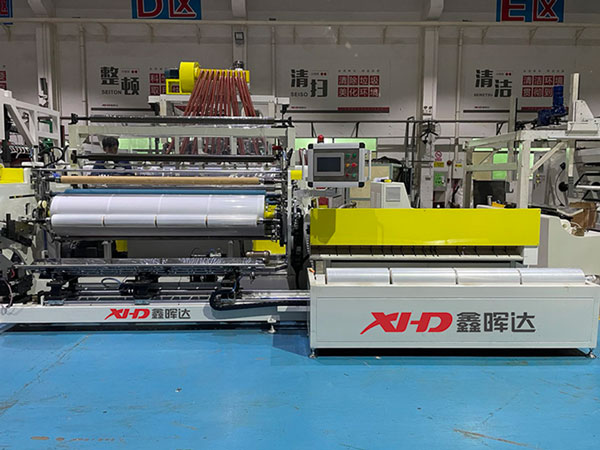

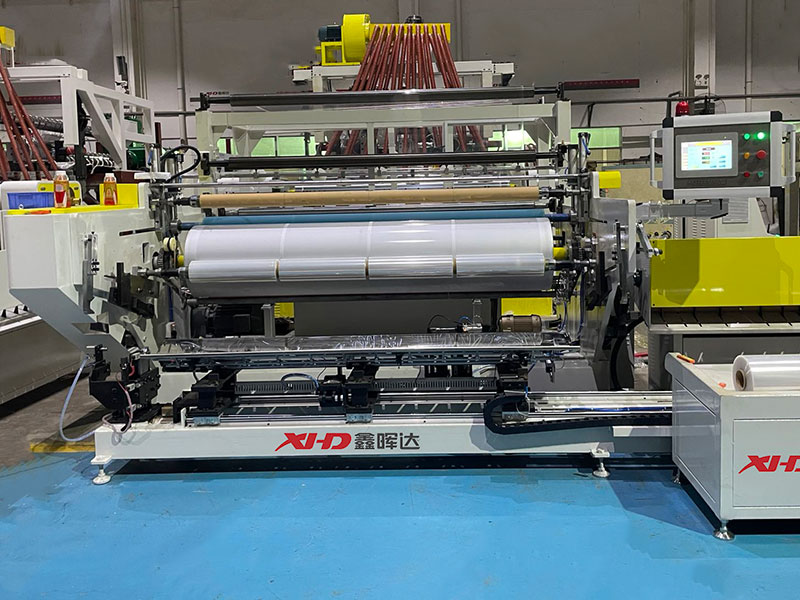

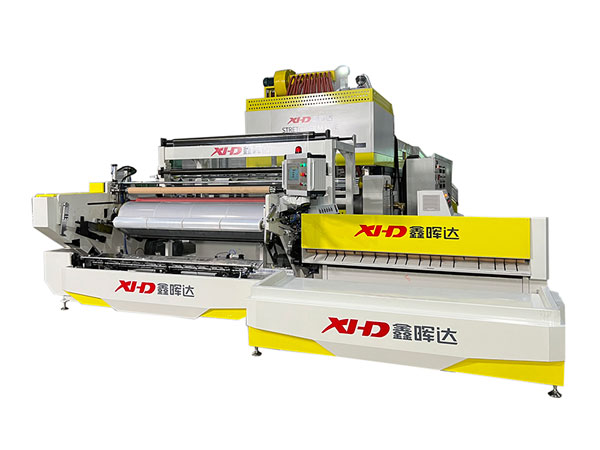

3-layer/5-layer 2000mm LLDPE Cast Stretch Film Machine, XHD-80-120-80-2400-J
  • 3-layer/5-layer 2000mm LLDPE Cast Stretch Film Machine, XHD-80-120-80-2400-J
  • 3-layer/5-layer 2000mm LLDPE Cast Stretch Film Machine, XHD-80-120-80-2400-J

2000mm LLDPE cast stretch film machine is equipped with jumbo roll winder and automatic paper cores unloading and loading system. This stretch film machine is one of our most popular models among our customers in Middle East countries. We have exported over 60 sets of jumbo roll stretch film machines to Turkey and nearby countries.

Technical Parameters
Model XHD-80/120/80-2400
Power supply 3 phases industrial power supply
Total Installation Power 280 kW (for the machine only)
Main Raw Material LLDPE, LDPE (few) & MLLDPE
Film Thickness 8-50 microns.
Film Width Maximum width: 2000 mm
Film Layer Structure Three or five layers
Design Line Speed 280 m/min
Extrusion Output 400-550 kg/h
Dimensions (L×W×H) 14.5×8.2×4.9 m (for reference only)
Gross Weight 20000 kg (for reference only)
