1000mm Stretch Film Machine
Applications
-
Stretch Film Rolls
2-5kg/roll small hand-use stretch film rolls
10-18kg/roll machine-use stretch film rolls
Medium size rolls with weight around 33.5kg at film width of 500mm - PE Cling Film Rolls 8-10 microns 250-500 mm PE cling film rolls
Highlights of Stretch Film Machine
- High design speed: 150m/min
- High working speed: 100-120m/min
- The quality of produced stretch film can rival that of films produced by European machines
- Excellent production capacity and power consumption ratio: around 0.4 kWh/kg
- The entire stretch film machine can be operated by one operator
- These machines are suitable for producing high quality machine-use stretch film rolls
- Automatic unloading of finished rolls, automatic loading of paper cores
- Automatic air shaft inflation and deflation
Standard Configurations
- Rubber couplings for connecting main motor and gear box
- Alloy screws and barrels with good nitrogen treatment
- Automatic film cutting and roll changing
- Top quality XHD T-die (standard) or JC-TIMES T-die (optional)
- ESD film pinning device for pinning film edges
- Metal hoses for connecting the water joints, with better cooling
- Idle guide rollers with hardened surface for stable and fast speed production
Remarks
- We can use some certain brands for the machine parts if the customer agrees to pay extra cost
- Customized proposals are always available for top quality, higher speeds, higher output and higher benefits

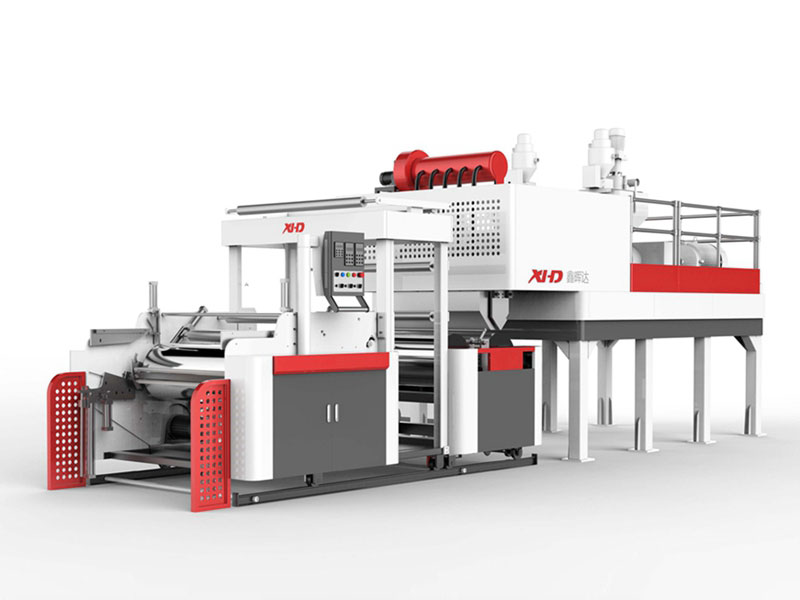

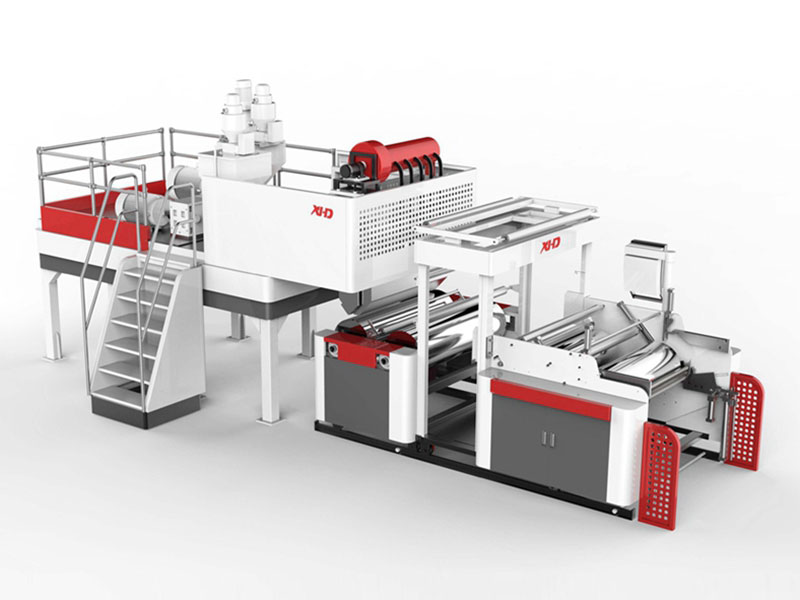

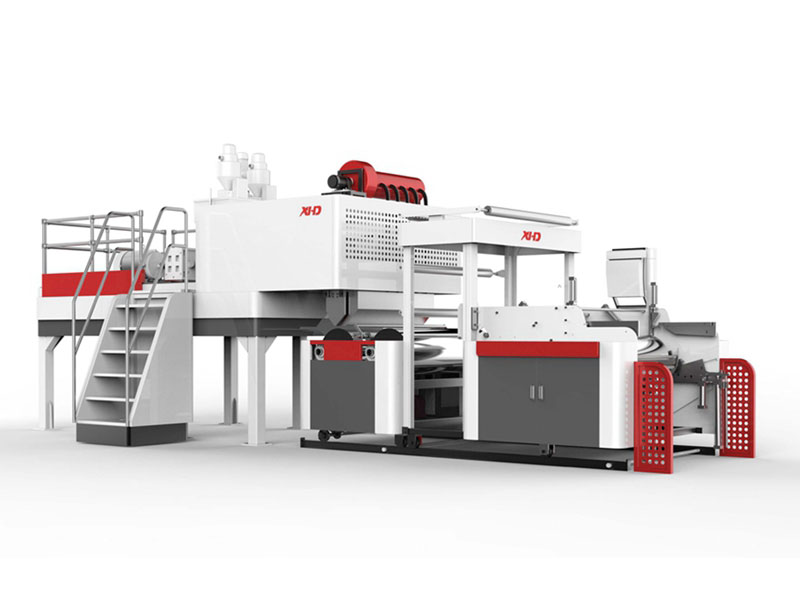

1-layer/2-layer 1000mm Stretch Film Machine, XHD-55-75-1250
XHD-55/75-1250 stretch film machine is the model that our customers choose the most. It is suitable for producing hand and machine rolls of stretch film,and PE cling film rolls.
Technical Parameters
| Model |
|
| Industrial Power Supply | 3 phases industrial power supply |
| Total Installation Power | 75 KW (for the machine only) |
| Main Raw Material | LLDPE, LDPE (few) & MLLDPE |
| Film Thickness | 12-50 microns (minimum thickness can be 8 microns) |
| Film Width | Maximum width: 1000 mm |
| Film Layer Structure | 2 layers of AB or 3 layers of ABA |
| Design Line Speed | 150 m/min |
| Extrusion Output | 80-150 kg/h |
| Dimensions (L×W×H) | 7.5×3×3.4 m (for reference only) |
| Gross Weight | 5500 kg (for reference only) |
Features
- Excellent production capacity and power consumption ratio: around 0.38 kWh/kg;
- Suitable for producing both the hand use (grade) stretch film rolls and machine use (grade) stretch film rolls;

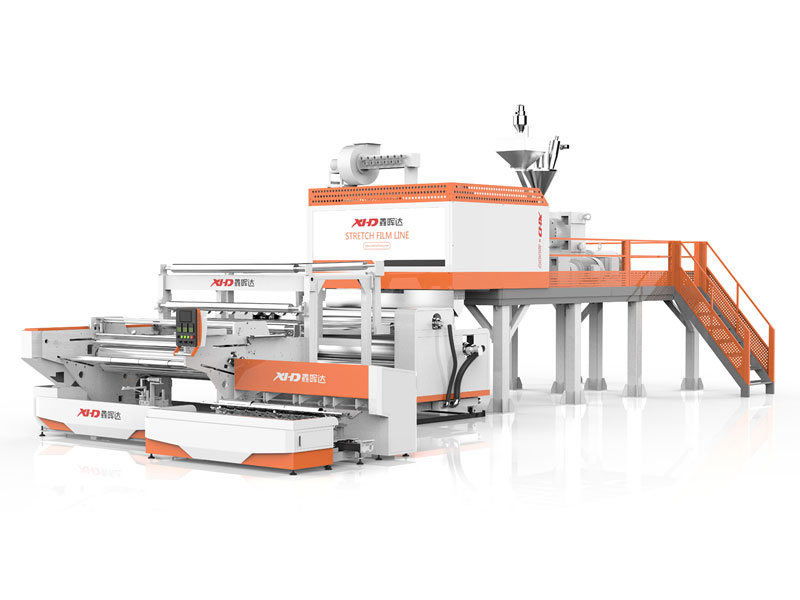

3-layer/5-layer 1000mm LLDPE Cast Stretch Film Machine, XHD-55-80-55-1250
Technical Parameters
| Model |
|
| Industrial Power Supply | 3 phases industrial power supply |
| Total Installation Power | 110 kW (for the machine only) |
| Main Raw Material | LLDPE, LDPE (few) & MLLDPE |
| Film Thickness | 12-50 μm |
| Film Width | Maximum width 1000 mm |
| Film Layer Structure | 3 layers of CBA |
| Design Line Speed | 150 m/min |
| Extrusion Output | 100-200 kg/h |
| Dimensions (L×W×H) | 8.5×3.2×3.4 m (for reference only) |
| Gross Weight | 8000 kg (for reference only) |
Features
- High production capacity: 130-180 kg/h (depends on the film thickness and line speeds);
- Excellent production capacity and power consumption ratio: around 0.4 kWh/kg;
- The stretch film machine is suitable for producing machine-use high quality stretch film rolls with thick thickness;
Configurations
- 37 kW motor and 37 kW VFD for the middle extruder
- Mitsubishi PLC and 3 pieces of W-shape air shafts

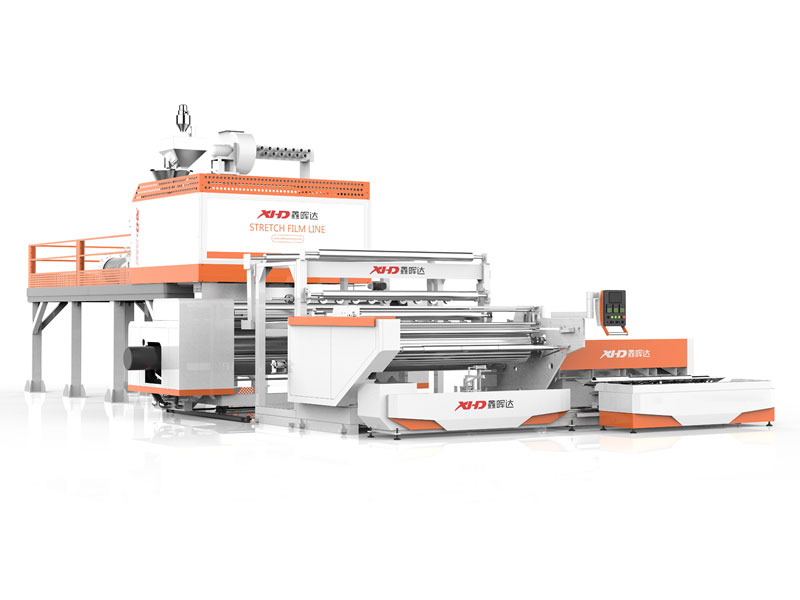

3-layer/5-layer 1000mm LLDPE Cast Stretch Film Machine, XHD-55-80-55-1250-A
Technical Parameters
| Model |
|
| Industrial Power Supply | 3 phases industrial power supply |
| Total Installation Power | 110 kW (for the machine only) |
| Main Raw Material | LLDPE, LDPE (few) & MLLDPE |
| Film Thickness | 12-50 μm |
| Film Width | Maximum width 1000 mm |
| Film Layer Structure | 3 layers of CBA |
| Design Line Speed | 150 m/min |
| Extrusion Output | 100-200 kg/h |
| Dimensions (L×W×H) | 8.5×5×3.4 m (for reference only) |
| Gross Weight | 8500 kg (for reference only) |
Configurations
- Automatic paper cores unloading and loading system
1. Automatic finished rolls unloading from the air shaft
2. Automatic paper cores loading onto the standby air shaft
3. Automatic air shaft inflation and deflation
4. No need to paste BOPP on the paper cores - 37 kW motor and 37 kW VFD for the middle extruder
- Mitsubishi PLC and 3 pieces of W-shape air shafts
